Freedom 275 Dual Console

Click on any image for gallery

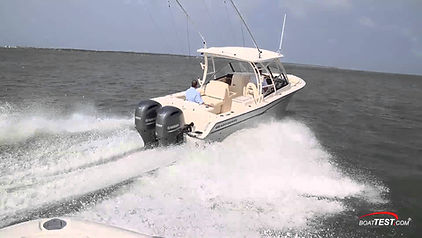

  Freedom 275 Dual Console VIDEO 'Boat Test.com                         Freedom 275 Dual Console VIDEO Walkthrough

  Click on either image to view video's!

Main Specifications:

Beam Amidships 8'6" (2.59 m)

Center Line Length w/o Engines 26'11" (8.20 m)

Bridge Clearance 8'6" (2.59 m)

Cockpit Depth 27" (0.69 m)

Hull Draft 20" (0.51 m)

Transom Deadrise 18.9 degrees (SeaV2® progression)

Maximum HP 500 (373 kW)

Fuel Capacity - Standard 184 gal. (696 l)

Weight w/o Engines 4972 lb. (2255 kg)

Standard Features

2 automatic bilge pumps (total 2600 GPH) (9842 LPH) Basic flotation
Bow rail - low profile 316 grade stainless steel Cockpit toe rails

Nonskid fiberglass liner
Self-bailing cockpit w/cockpit drains (4) Stainless steel through-hull fittings

Cockpit & Deck

100% hand laid hull & deck
Accessory outlet - 12V Accessoryoutlet-5VduplexUSBport
Anchor chute w/windlass wiring
Anchor windlass w/remote switches at helm and bow Battery select switch

Cleats - flush mount (pop up)
Cockpit bolsters
Cockpit freshwater shower (recessed)
Cockpit lights - blue LED
Companion grab rail
Compass
Cutting board
Deck hardware - 316 grade stainless steel through-bolted
Drink holders - stainless steel (12)
Factory engine pre-rigging
Fish/ice box - 165-qt. (156.1 l) aft insulated box w/light & ob drain
Fish/ice box - 96-qt. (91.5 l) starboard insulated box w/ob drain
Flush mount electronics area
Footrests - helm and companion
Forward bolsters
Fuel capacity - 184-gallon (696 l) tank
Hardtop w/painted aluminum frame, storage net, speakers (2), LED spreader lights, tri-colored (red, blue, white) LED recessed lights (4), side mounted rod holders (4), radar flat & outrigger plates
Head - lockable console w/bulk storage, mirror, shelf, marine head w/macerator, 10-gallon (38 l) holding tank and pump out & cherry and holly sole
Hydraulic trim tabs w/indicator & retractor
Integrated outboard mounting system w/swim platform & ladder
International lighting
Livewell - 29.5-gallon (111.7 l) aft insulated raw water livewell w/light, full column distribution inlet & ob drain (1100 GPH pump) (4164 LPH)
Rod holders (4)
Rod storage racks - horizontal (3)
Rubrail - high density PVC w/stainless steel insert
Seating - Command Elite horizontally and vertically adjustable contoured helm chair w/deluxe cushioning & flip-up bolster
Seating - Deluxe companion seating w/electromechanically extendable lounge seat
Seating - fold away aft bench seat w/cushion
Seating - port & starboard bow box cushions
Steering - hydraulic tilt
Steering wheel - 316 grade stainless steel w/knob
Stereo system w/AM/FMtuner, MP3 auxiliaryaudio connections/amplifier, Bluetooth®, remote control & fold down storage; speakers - aft (2), bow (2) & hardtop (2)
Stern eyes - heavy-duty 316 stainless steel
Storage - forward anchor locker w/rode storage
Storage - lockable starboard console compartment w/light & storage pocket w/tackle trays (2)
Storage - port bow box
Storage - port console tablet/phone compartment
Table - fiberglass bow table (doubles in cockpit area)
Transom door - fiberglass
Washdown - pressurized raw water w/hose
Water tank - 20-gallon (75.7 l) freshwater
Windbreak door
Windshield - walk-through tempered glass windshield
Windshield header - stainless steel
Windshield wiper (starboard)

Optional Features

Options

CE certification package
Cockpit step
Convenience package - battery charger & dockside power w/galvanic isolator
Deluxe wet bar w/Corian® countertop, sink, storage drawers (3) & trash compartment
Engine flush system w/hose attachment aft (one per engine)
Grill - 1300W w/power inverter (requires convenience package) (requires Deluxe wet bar option)
Hardtop color - underside of fiberglass hardtop (requires matching gelcoat hull)
Head - marine head w/electric flush (10-gallon) (38 l)
Helm Masterâ„¢ - Yamaha Helm Masterâ„¢ control system (not available w/TF150 package) (requires convenience package) Hull color - Cape Gray, Celestial Blue, Coastal Fog Blue, Sea Glass or Sand gelcoat; Harbor Blue paint
International AC electrical conversion 220V(50Hz)
Outrigger kit - 15-ft. (4.6 m) radial hardtop mounted
Painted hardtop top mounted rod holders (4)
Refrigerator - stainless steel drawer unit in wet bar (requires Deluxe wet bar option) (replaces storage drawers)
Ski pylon - retractable
Steering - power assist steering (n/a with Helm Masterâ„¢)
Sun platform insert w/cushion

Canvas Options

Aft curtain (ivory)
Bow cover (ivory)
Drop curtain (ivory)
Front & side curtains (ivory) Lounge seat cover (ivory) Tonneau cover (ivory)
